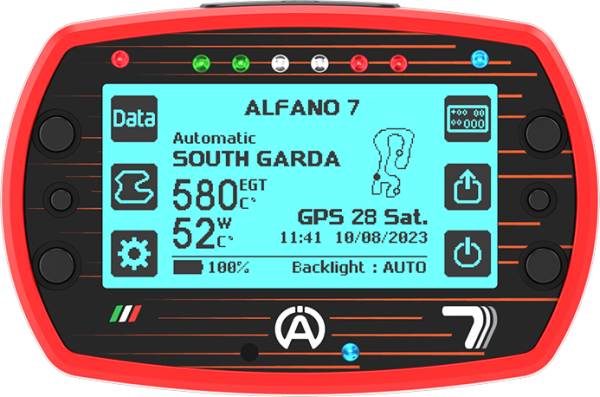

A1075 Alfano 7 1T

THE FUTURE

The ALFANO 7, robust, advanced, professional.
The ALFANO 7 now has a 25Hz GPS that is 2.5 times faster than its predecessor, the ALFANO 6, improving the accuracy of time and heading information. The ALFANO 7 also features wireless communication, which offers you countless possibilities. The sensors communicate directly with the ALFANO 7, which means very easy installation as no cables or intermediate boxes are required. Wireless technology has enabled us to develop sensors that can measure the pressure and temperature inside the tyres. We have also developed wireless infrared sensors that can measure temperatures on the tyre surface. With the help of our USB, wireless dongle, which is connected to a PC and will be available soon, the ALFANO 7 can transmit this data further and faster - +/- 5 times faster than Bluetooth.
GPS
The ALFANO 7 has a 25 Hz GPS that utilises four satellite constellations for more precise positioning:
GALILEO (EU), NAVSTAR (US), GLONASS (RU), BEIDOU (CHINA).

BATTERY
40 hours of battery life allow you to get through the whole weekend on a single charge, thanks to our powerful and low-consumption electronics. You can also charge your Alfano 7 via a POWER BANK without having to take it off the steering wheel.

Bluetooth
Bluetooth communication is specifically designed to send data back to a smartphone, tablet and PC. It is simple and fast and is activated directly via the speed dialling button, even when the Alfano 7 is switched off.

APP
We are the first and only company to offer our customers the option of analysing their data from a smartphone or tablet.

WIRELESS
We have developed and implemented a wireless communication that allows a series of wireless sensors to collect information.
We have developed two types of wireless sensors.
The first sensor measures the temperature inside the tyre and the tyre pressure with an accuracy of 0.02 bar. The second sensor is an infrared sensor that measures the temperature on the surface of the tyre. With a dongle connected to a PC, the ALFANO 7 can transmit data faster than via Bluetooth.

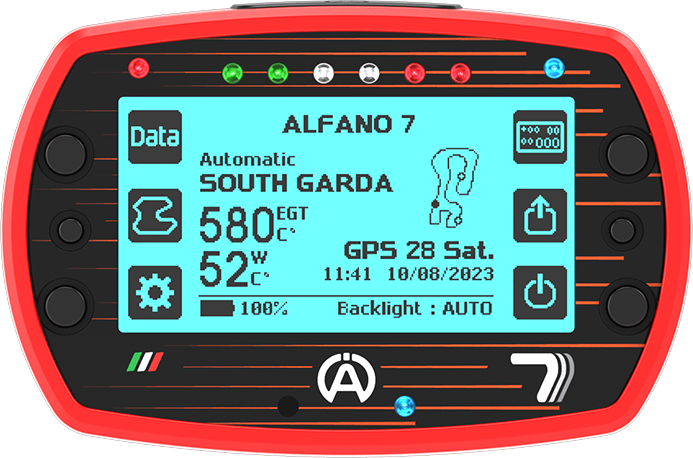

To allow the user to customise the appearance of the various displays, the Alfano has a high-resolution, freely configurable graphic display.
The numerous LEDs, whose colours, values and brightness can be set individually.
The speed can be measured via GPS or a speed sensor.
Only 1 temperature can be connected to the 1T, e.g. water or exhaust gas,
With the 2T, 2 temperature sensors, e.g. for water and exhaust gas, can be connected to the device using the A2180 hub.
The integrated lithium-ion 3000 mA battery guarantees a power supply for more than 40 hours and can be recharged using a charging cable (no need to remove or change the battery).
The data is downloaded via a Bluetooth or wireless connection.
The tyre temperature and pressure sensors can also be connected internally or externally via wireless.
Alfano / 1T and 2T have the same hardware which makes it possible to expand a 1T to 2T.
You can purchase a lifetime licence on the website.
As an additional extension a Box 12 is available which allows to connect more sensors to the system.
